Feb 15, 2018

Sanremo Treviso LX PCB alternative

0 comments



LEVEL REGULATOR RL30 1E 230V 100K TV ROHS

Original cod. 10112018A GICAR code 9.1.41.19G

If this board is faulty and needs a quick replacement the following board can be used

LEVEL ADJUSTER RL01E/SIC/F+LED 240V

PART NUMBER: 1359007

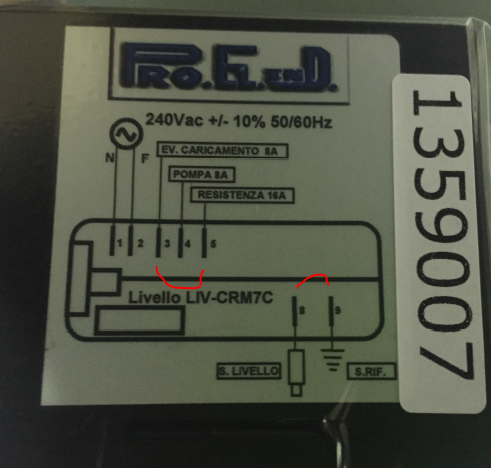

Two connections are position swapped from the original connection arrangement namely Level & Ground and EV Loading & Element respectively as per pic on top



Original board = Expobar Board



Main Supply = N / F

Pompa = Pompa

EVCaricamento = EV.Caricamento

Riscaldamento = Resistenza

SRif-GND = S.RIF

Slivello = S.Livello



Shared by Dayne Larke @ Espressoworks



If you find this does not work please let us know.
